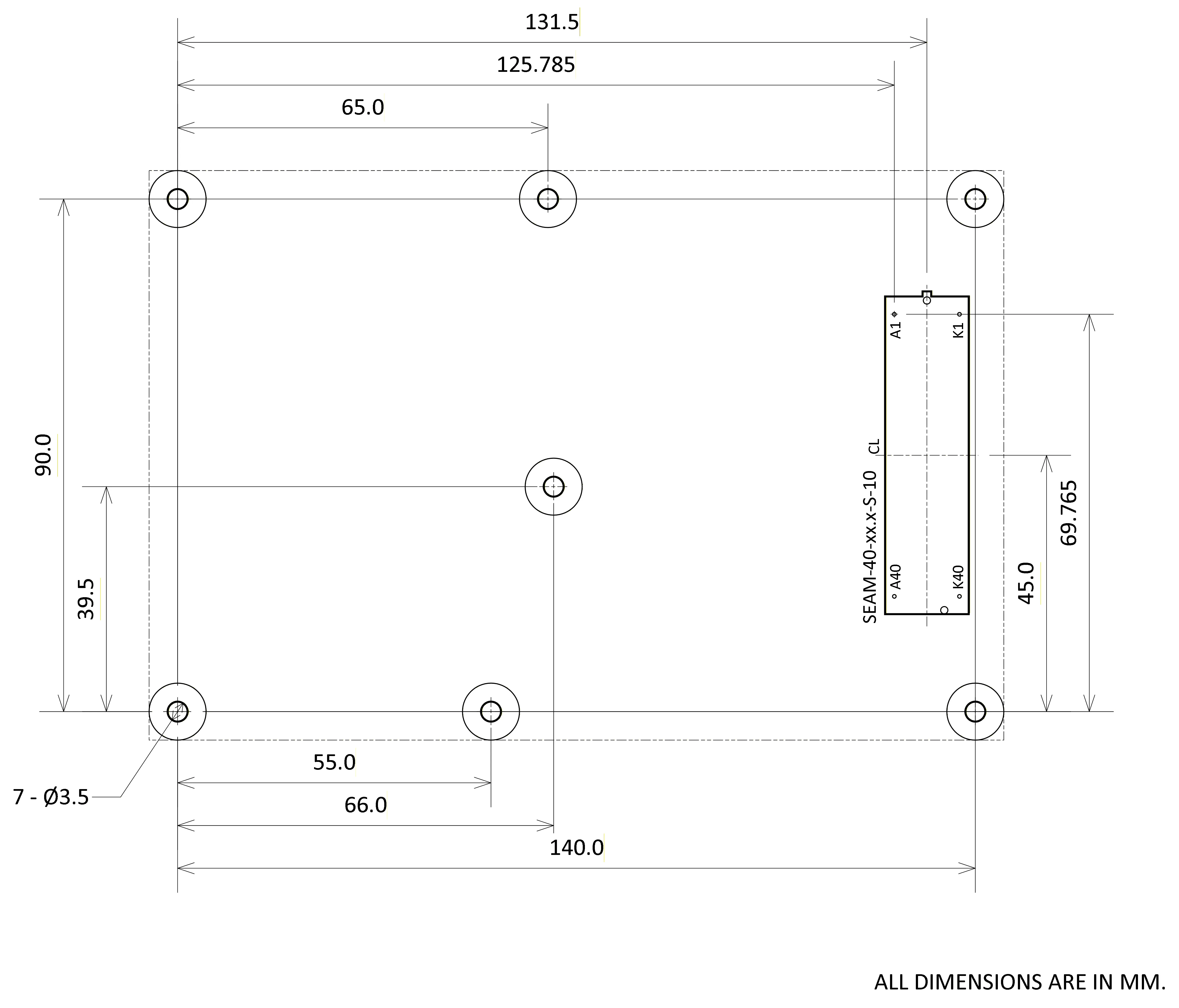

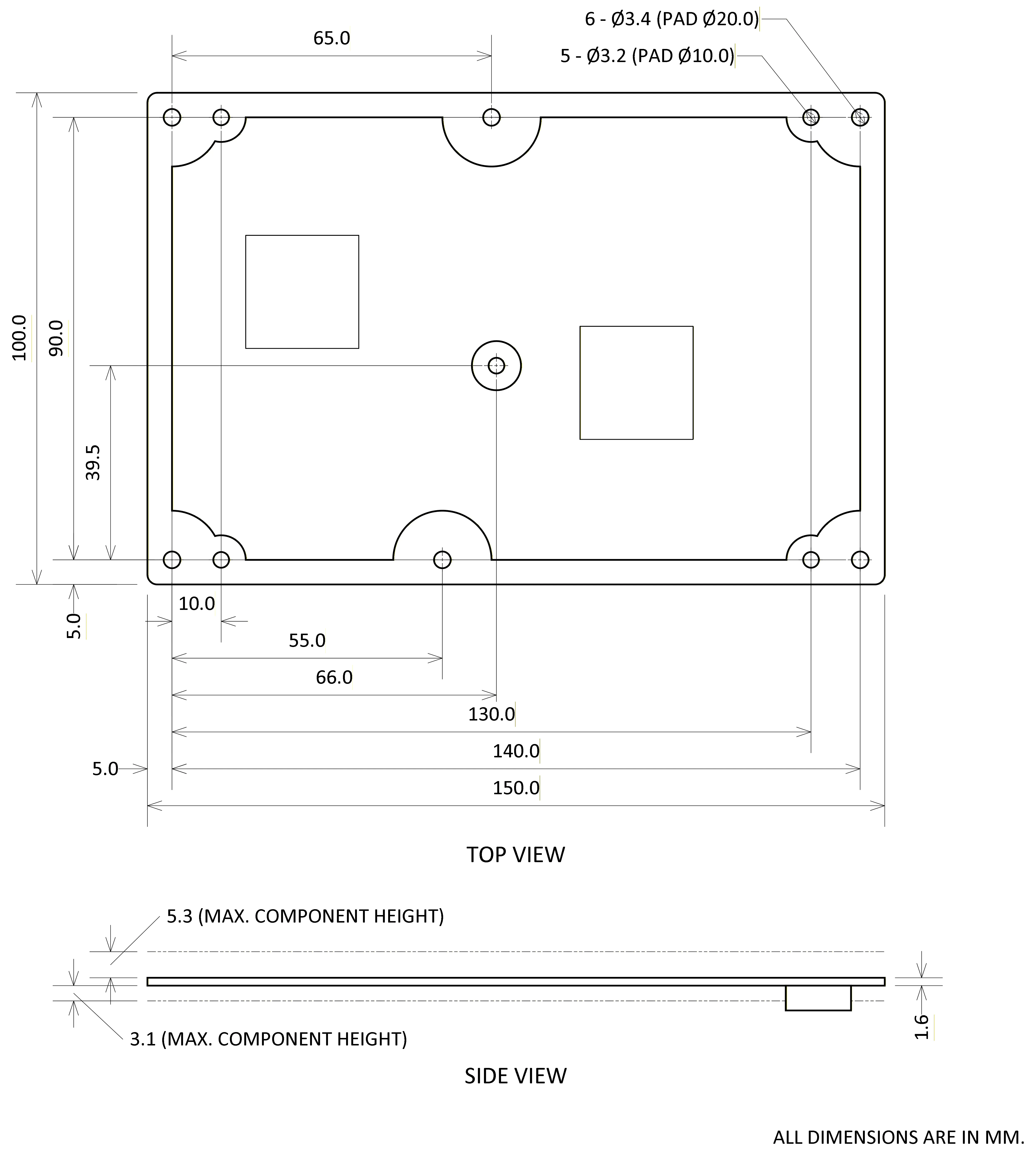

Mechanical Characteristics Board Outline Dimensions and Mounting Hole Locations The following figure shows the board outline dimensions and mounting hole locations. Board-to-Board Connector Locations The following figure shows the placement of the board-to-board connectors. Board-to-Board Connector Relative Locations on the Carrier Board The following figure shows the relative locations of the board-to-board connectors on the carrier board (top view).
